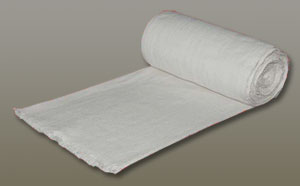

Ceramic Fibre Textiles

Ceramic Fibre Textiles
Classification temperature : 1260 C
1) Cloth
2) Tape

 Availability
Standard sizes:
Cloth
3mm Thick X 1 Mtr Width X 10 Mtrs length
Tapes
3mm Thick X 50 mm Width X 25 Mtrs length

TYPE : High Temperature refractory fibre Cloth & Tapes.

Applications
€¢ Furnace doors and radiant tube seals
€¢ Blast furnace stove expansion joint
€¢ Coke oven ascension pipe seal, preventing fume emission on exhaust collection system
€¢ Coke oven door seal preventing gas leakage between refractory and door jamb.
€¢ Piping insulation
€¢ Hot top seal
€¢ Welding curtains
€¢ Insulation between anode buss and box
€¢ Asbestos free and ideal replacement for asbestos cloth products

Features
€¢ High temperature stability
€¢ Thermal shock rĂ©sistance
€¢ Low heat storage
€¢ Good chemical stability

Description
Cloth / Tape are woven from ceramic fibre yarn reinforced with Fiberglass yarn/SS wire. Cloth / Tape can be used in wide range of industrial, high temperature sealing and insulation application. Cloths are reinforced with fibre glass yarn can be used up to 850oC and reinforced with SS wire can be used up to 1100oC.

Main Properties Ceramic Fibre Textiles
Physical Properties Cloth Type
Classification temperatureoC 1260 1260
Chemical composition ( % )
Al2O3 42 - 46 42 - 46
SiO2 54 - 58 54 - 58
Loss on ignition % < 25 < 25
Weight (kg/m2 1.0 1.0
Availability and packing (Thickness : 2mm €“ 6mm)
Width (mm) - X
25 - X
50 - X
75 - X
100 - X
125 - X
1000 X -
Cloth & Tapes of other sizes (width) are available on request
All above products are subjected to standard tolerances. The values given herein are typical values obtained in accordance with accepted test methods and subject to normal manufacturing variations. They are supplied as a technical service and are subject to change without notice. Therefore, the data contained herein should not be used for specification purposes.
